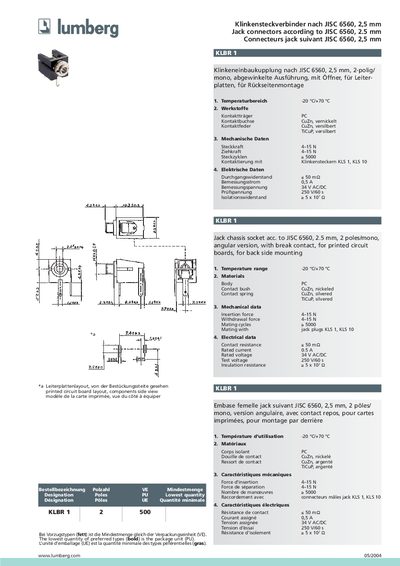

This is a jack connector that complies with the JISC 6560 standard, is 2.5mm in size, has 2 poles/mono, has a break contact, is used for printed circuit boards, and is mounted on the back.
The KLBR 1 is a 2.5 mm jack chassis socket that complies with JISC 6560. It is designed for back‑side mounting on printed‑circuit boards and mates with KLS 1 and KLS 10 jack plugs. The component is offered in a preferred‑type packaging (VE) with a minimum order quantity.
Key mechanical data include an insertion force of 4‑15 N, withdrawal force of 4‑15 N and a life‑time of 5000 mating cycles. Electrical characteristics are a contact resistance of 50 mΩ, rated current of 5 A, rated voltage of 34 V AC/DC, test voltage of 250 V / 60 Hz and insulation resistance of 2.5 × 10⁷ Ω. The operating temperature range is –20 °C to +70 °C. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Insertion force | 4‑15 N |
| Withdrawal force | 4‑15 N |
| Mating cycles | 5000 |
| Rated current | 5 A |
| Rated voltage | 34 V AC/DC |
| Contact resistance | 50 mΩ |
| Insulation resistance | 2.5 × 10⁷ Ω |
The KLBR 1 is rated for a current of 5 A.
It is specified for up to 5000 mating cycles.
The insertion force is between 4 N and 15 N.
It operates from –20 °C to +70 °C.
