This is a connector's specification, including the connector's temperature range, materials, mechanical data, electrical data, and ordering information.

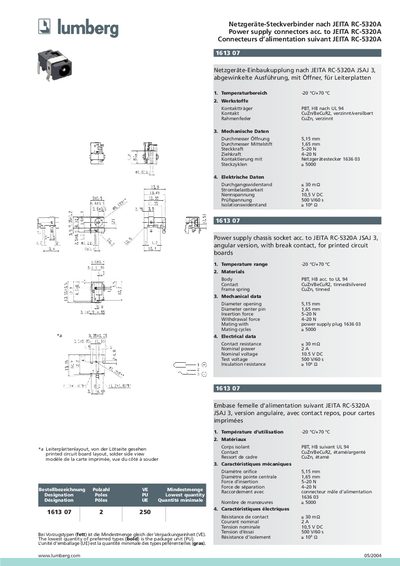

The document provides the specifications for Lumberg's power supply connector compliant with JEITA RC‑5320A (JSAJ 3 angular version). It lists temperature limits, material grades, mechanical dimensions, and electrical performance.
Key data include a temperature range of –20 °C to +70 °C, PBT housing (HB, UL‑94), CuZn/BeCuR2 contacts, and a 5‑20 N insertion force. Electrical parameters specify a contact resistance under 30 mΩ, a nominal current of 2 A, and a nominal voltage of 10.5 V DC. This manual is written in German.
| Temperature range | -20 °C / +70 °C |
|---|---|
| Housing material | PBT, HB (UL‑94) |
| Contact material | CuZn/BeCuR2, tinned/silvered |
| Frame spring material | CuZn, tinned |
| Opening diameter | 5.15 mm |
| Center pin diameter | 1.65 mm |
| Insertion force | 5‑20 N |
| Withdrawal force | 4‑20 N |
| Mating cycles | 5000 |
| Contact resistance | < 30 mΩ |
| Nominal voltage | 10.5 V DC |
| Test voltage | 500 V / 60 Hz |
| Insulation resistance | 10° 2 |
The connector operates from –20 °C to +70 °C.
The connector is rated for 5000 mating cycles.
The contact resistance is less than 30 mΩ.
