This document describes the features and characteristics of power supply connectors manufactured by Lumberg according to DIN 45323 standard, including temperature range, materials, mechanical data, and electrical data.

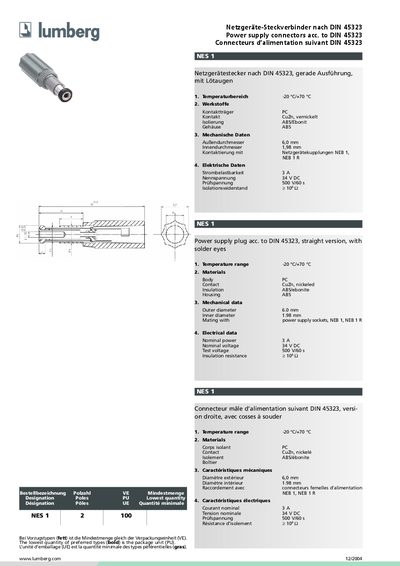

This handbook describes Lumberg's NEB 1 and NEB1R power‑supply connectors that comply with DIN 45323. It provides data on temperature range, materials, mechanical dimensions and electrical ratings.
Key sections cover the operating temperature (-20 °C to +70 °C), construction materials (PC body, CuZn‑nickeled contacts, ABS/Ebonit housing), connector dimensions (6.0 mm outer, 1.98 mm inner diameter) and electrical parameters such as 3 A nominal current, 34 V DC nominal voltage and 500 V/60 Hz test voltage. This manual is written in German.
| Operating temperature range | -20 °C to +70 °C |
|---|---|
| Contact material | CuZn, nickeled |
| Housing material | ABS/Ebonit |
| Test voltage | 500 V/60 Hz |
The connectors operate from –20 °C to +70 °C.
The outer diameter is 6.0 mm and the inner diameter is 1.98 mm.
