KV series round connector is designed according to IEC 60130-9 standard, with IP 40 waterproof and dustproof grade, straight type with screw cap and welding terminals.
The KV series from Lumberg provides circular connectors with a threaded joint compliant with IEC 60130‑9 and an IP40 protection rating. Available in 3‑8 pole and 12‑pole configurations, the connectors feature long or short kink‑protection tabs depending on the variant.

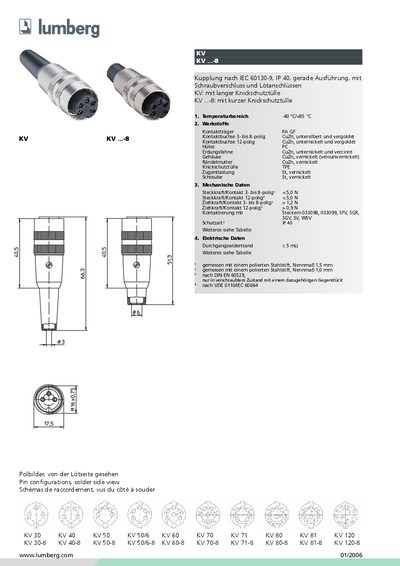

The document lists mechanical data such as insertion and withdrawal forces, electrical data including contact resistance, and material options for contacts and housing. Temperature range is –40 °C to +85 °C, and the connectors are supplied in individual plastic‑bag packs within a cardboard box. This manual is written in German.
| Temperature range | -40 °C to +85 °C |
|---|---|
| Insertion force (3‑8 poles) | <5.0 N |
| Withdrawal force (3‑8 poles) | >1.2 N |
| Contact resistance | <5 mΩ |
| Contact material | CuZn, pre‑silvered and gilded |
| Kink protection | Long for KV, short for KV‑...‑8 |
They operate from –40 °C to +85 °C.
The insertion force is less than 5 N.
Contact resistance is specified as less than 5 mΩ.
