1502 01 is a 3.5mm 3-pole upright jack chassis socket supporting JISC 6560 standard. Product features include insertion force of 5-30N, rated voltage of 34V AC/DC.

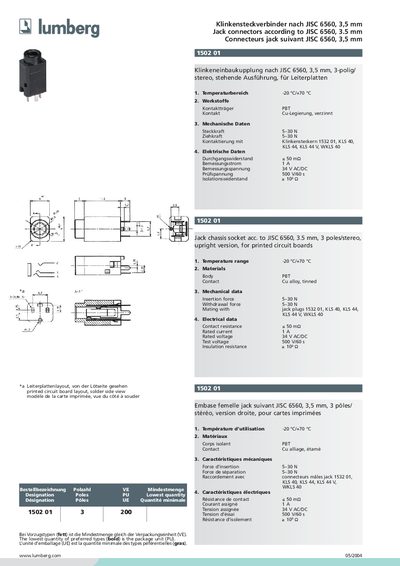

The document provides the mechanical and electrical specifications for Lumberg jack connectors designed for printed‑circuit‑board mounting and compliant with the JISC 6560 standard. It lists temperature range, material composition, insertion/withdrawal forces and key electrical parameters.
Key sections cover temperature range, materials, mechanical data (insertion and withdrawal force), and electrical data such as contact resistance, rated current, rated voltage, test voltage and insulation resistance. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Contact material | Cu alloy, tinned |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V for 60 s |
The connector can be used from –20 °C up to +70 °C.
