This product is a 3.5mm audio jack that conforms to the JISC 6560 standard. It supports 3-pole/stereo connections and has a 5-20N insertion force and a 4-20N withdrawal force. It can withstand at least 1000 mating cycles. The rated current is 1A, the rated voltage is 34V AC/DC, the test voltage is 500V/60s, and the insulation resistance is 108 ohms.

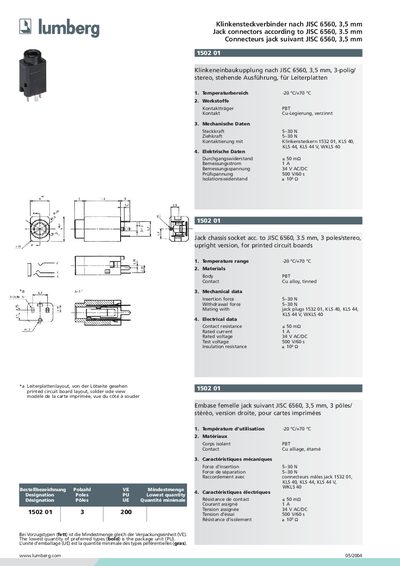

This document provides the technical data for Lumberg's 3.5 mm, 3‑pole stereo jack connectors that follow the JISC 6560 standard. It lists the temperature range, material composition, mechanical forces, and electrical parameters for the connector suitable for printed‑circuit‑board mounting.
Key sections cover temperature limits, body and contact materials, insertion and withdrawal forces, contact resistance, rated current and voltage, test voltage, and insulation resistance, enabling designers to verify compatibility with their applications. This manual is written in German.
| Operating temperature range | -20 °C to +70 °C |
|---|---|
| Contact material | Cu alloy, tinned |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V for 60 s |
The connector can be used from –20 °C up to +70 °C.
