This document is a specification sheet for the RCA connector of JEITA RC-5231 standard, which introduces the characteristics of the connector, such as temperature range, materials, mechanical data, electrical data, etc.

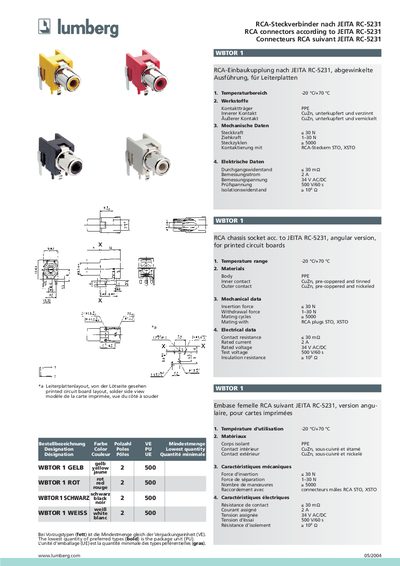

This datasheet describes the RCA‑type connector that complies with JEITA RC‑5231. It is intended for solder‑on printed circuit boards and is offered in an angular version. The document lists the applicable temperature range, material composition, mechanical performance and electrical ratings.
Key data include insertion and withdrawal forces, mating cycle life, contact resistance, rated current and voltage, test voltage, and insulation resistance. Ordering information and a PCB‑layout illustration are also provided. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Insertion force | < 30 N |
| Withdrawal force | 1‑30 N |
| Mating cycles | 5000 |
| Contact resistance | < 30 mΩ |
| Rated current | 2 A |
| Rated voltage | 34 VAC/DC |
| Test voltage | 500 V / 60 s |
| Insulation resistance | ≥ 10⁸ Ω |
The connector operates from –20 °C to +70 °C.
The rated current is 2 A.
The connector is rated for 5 000 mating cycles.
The insertion force is less than 30 N.
