This product is a button-type 3.5mm connector. The brand is lumberg and the model is KLK 22. The minimum order quantity is 100. The temperature range is -20 to 70 degrees Celsius. The main materials are copper tin alloy and polyvinyl chloride. The insertion force is 4 to 20 Newtons, the withdrawal force is 2 to 15 Newtons, and the mating cycles are greater than 5000. The DC voltage is 34 volts, the AC voltage is 34 volts, the test voltage is 500 volts / 60 seconds, and the insulation resistance is 108 ohms.

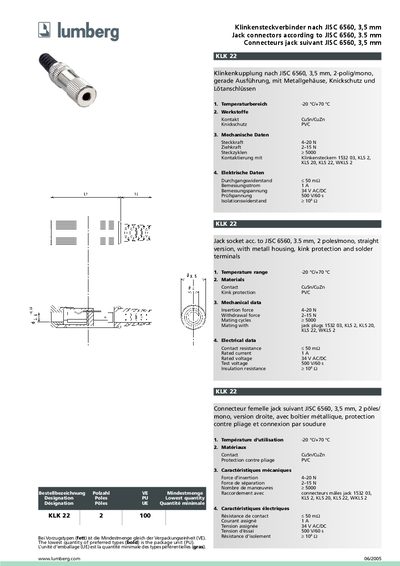

The KLK 22 2 100 is a 2‑pole/mono straight jack connector compliant with JISC 6560, featuring a metal housing, PVC kink protection and solder terminals. It is supplied by Lumberg and intended for use in environments ranging from -20 °C to +70 °C.
Key specifications include a contact resistance of ≤50 mΩ, rated current of 1 A, rated voltage of 34 V DC, insertion force of 4‑20 N, withdrawal force of 2‑15 N, and a mechanical life of over 2 500 mating cycles. The connector uses CuSn/CuZn contacts and PVC for kink protection. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Contact material | CuSn/CuZn |
| Kink protection material | PVC |
| Insertion force | 4‑20 N |
| Withdrawal force | 2‑15 N |
| Mating cycles | > 2 500 |
| Rated current | 1 A |
| Rated voltage | 34 V DC |
| Contact resistance | ≤ 50 mΩ |
| Test voltage | 500 V for 60 s |
It can operate from –20 °C up to +70 °C.
The connector is rated for 1 A current and 34 V DC voltage.
It is specified for more than 2 500 mating cycles.
The contacts are made of a CuSn/CuZn alloy.
