0308-2 is Lumberg's SWUM™ interface product, with protection level IP68/67, using bolt connection and soldering terminals, suitable for front installation.

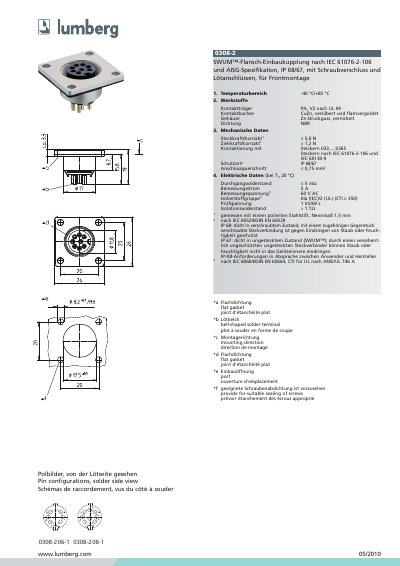

The 0308-2 SWUM flange chassis socket is designed for front‑mount applications and complies with IEC 61076‑2‑106 and AISG specifications. It features a threaded joint, solder terminals and a compact design suitable for harsh environments.
Key specifications include a temperature range of –40 °C to +85 °C, IP68/67 sealing, a rated current of 5 A at 360 V AC, and a maximum wire cross‑section of 0.75 mm². Mechanical data such as insertion force (≤ 5 N) and withdrawal force (≥ 1.2 N) ensure reliable mating. This manual is written in German.
| Temperature range | -40 °C / +85 °C |
|---|---|
| Body material | PA, V2 according to UL 94 |
| Contact bush material | CuZn, silvered and flash‑gilded |
| Housing material | Zn die‑cast, nickeled |
| Insertion force / contact | ≤ 5.0 N |
| Withdrawal force / contact | ≥ 1.2 N |
| Rated current | 5 A |
| Rated voltage | 360 V AC |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | > 1 TΩ |
| Test voltage | 1 kV for 60 s |
| Maximum wire section | ≤ 0.75 mm² |
It operates from –40 °C up to +85 °C.
The connector is rated for 5 A at 360 V AC.
