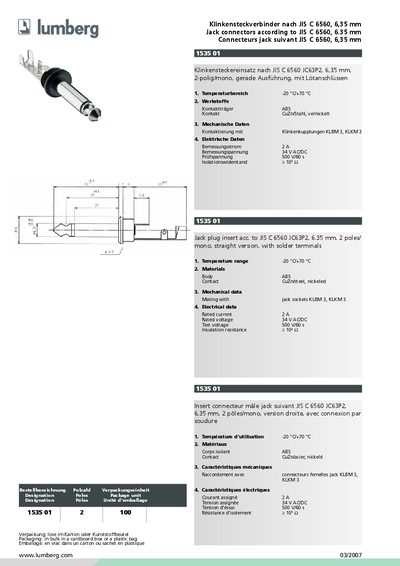

The document introduces the 6.35 mm Klinkensteckverbinder product that complies with JIS C 6560 standard. The product includes a straight version of 2-pole/mono Klinkensteckereinsatz with ABS body and CuZn/steel contacts. The product has a temperature range of -20°C to +70°C, a rated current of 2A, and a rated voltage of 34V.
The Lumberg jack connector complies with JIS C 6560 and is offered in a straight 2‑pole/mono version (JC63P2). It is supplied in bulk, packaged in cardboard boxes or plastic bags.
Key specifications include a temperature range of –20 °C to +70 °C, an ABS housing, copper‑zinc/steel contacts with nickel plating, a rated current of 2 A, a rated voltage of 34 V AC/DC, a test voltage of 500 V for 60 s, and an insulation resistance of 2 × 10⁰ Ω·m.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Body material | ABS |
| Contact material | CuZn/steel, nickeled |
| Rated current | 2 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V for 60 s |
| Insulation resistance | 2 × 10⁰ Ω·m |
The connector operates from –20 °C to +70 °C.
It is rated for a continuous current of 2 A.
The connector is rated at 34 V AC/DC.
The housing is made of ABS plastic.
