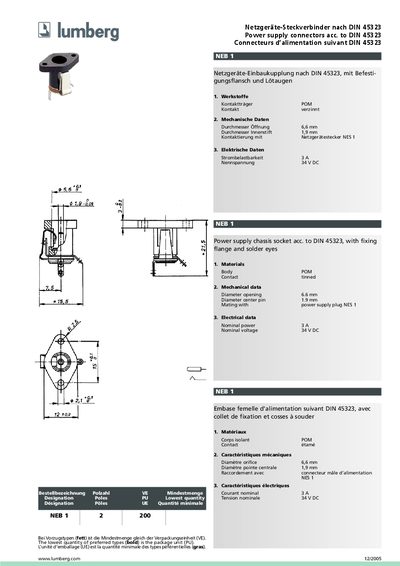

Lumberg NEB 1 2 200 Power Supply Connector DIN 45323 Product Leaflet

About this manual

The NEB 1 2 200 connector is a DIN 45323 power supply socket made of POM with tinned contacts. It mates with the NES 1 power supply plug and features a 6.6 mm opening and a 1.9 mm center pin.

Mechanical data, electrical ratings and ordering information are provided, including a minimum order quantity and packaging details. The connector is suitable for applications requiring 3 A current and 34 V DC nominal voltage. This manual is written in German.

What's inside

• Materials
• Mechanical Data
• Electrical Data
• Ordering Information
• Minimum Quantity

Specifications

Frequently asked questions

What is the nominal current rating of the connector?

The connector is rated for a nominal current of 3 A.

What is the nominal voltage of the connector?

The nominal voltage is 34 V DC.

What material is the connector body made of?

The body is made of POM (polyoxymethylene).

What are the mechanical dimensions of the connector opening and center pin?

The opening diameter is 6.6 mm and the center pin diameter is 1.9 mm.
