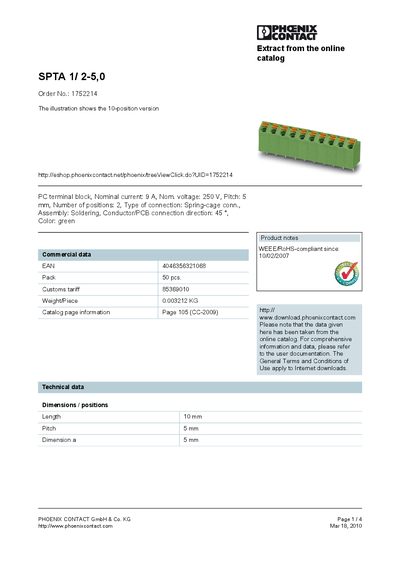

This document describes the features and characteristics of the PC terminal block product SPTA 1/2-5,0 from PHOENIX CONTACT GmbH & Co. KG.
The SPTA 1/2-5,0 is a green, spring‑cage terminal block with a 5 mm pitch and two positions. It is supplied by Phoenix Contact and can be assembled by soldering, with a 45° conductor/PCB connection direction.
The document provides detailed technical data such as nominal current and voltage ratings, surge voltage values, dimensions, weight, packaging, and certification information (CUL, UL). It also includes drawing references and contact details for Phoenix Contact.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 2 |
| Type of connection | Spring‑cage |
| Weight per piece | 0.003212 kg |
The terminal block is rated for a nominal current of 9 A.
The pitch is 5 mm.
It has two positions.
It is certified to CUL and UL standards.
