PC 4 HV/ 7-ST-7,62 is a connector product of PHOENIX CONTACT company, with rated current of 20A, rated voltage of 800V, thread of M3, tightening torque of 0.5-0.6Nm, insulating material group of I, rated surge voltage of 8kV, rated voltage of 1000V.
The PC 4 HV/7-ST-7,62 is a 7‑position plug component with a 7.62 mm pitch, designed for industrial electrical connections. It features a screw‑type connection, green housing, and is rated for 20 A nominal current and 800 V nominal voltage.

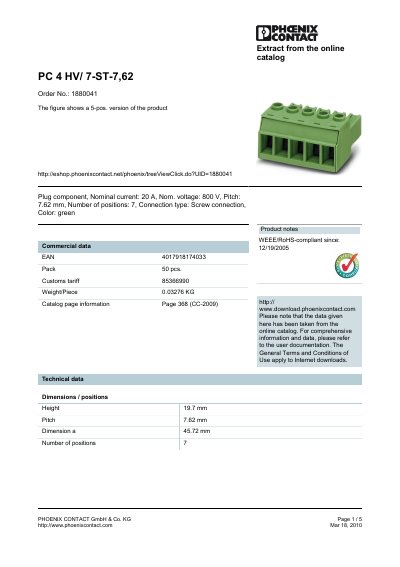

The data sheet lists key dimensions, electrical ratings, tightening torque values, and certifications (CSA, CUL, GOST, UL). It also includes accessory part numbers such as marker pens, marker cards, and a screwdriver, as well as a derating curve diagram for the product.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 800 V |
| Pitch | 7.62 mm |
| Number of positions | 7 |
| Height | 19.7 mm |
| Rated surge voltage (III/3) | 8 kV |
| Insulating material group | I |
| Weight per piece | 0.03276 kg |
| Certifications | CSA, CUL, GOST, UL |
| Minimum tightening torque (M3) | 0.5 Nm |
| Maximum tightening torque (M3) | 0.6 Nm |
The plug is rated for a nominal current of 20 A.
It has 7 positions.
The minimum torque is 0.5 Nm and the maximum torque is 0.6 Nm.
It is certified by CSA, CUL, GOST, and UL.
