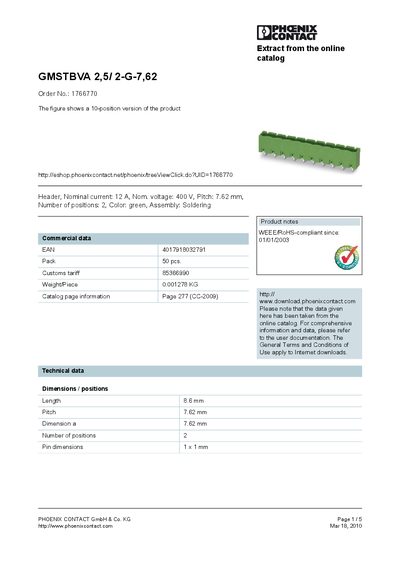

This document describes the features and characteristics of the GMSTBVA 2,5/ 2-G-7,62 product, including the header, nominal current, nominal voltage, pin dimensions, etc.
The GMSTBVA 2,5/ 2-G-7,62 is a green‑colored terminal block with a 7.62 mm pitch, designed for soldering assembly. It is rated for a nominal current of 12 A and a nominal voltage of 400 V (500 V for some variants).
The sheet provides detailed dimensions, certification information, accessory part numbers, and a wiring diagram. Contact details for Phoenix Contact and ordering information are also included.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 2 |
| Color | green |
| Assembly type | Soldering |
| Weight per piece | 0.001278 KG |
| EAN | 4017918032791 |
| Customs tariff code | 85366990 |
The terminal block is rated for a nominal current of 12 A.
The pitch of the terminals is 7.62 mm.
It is supplied in green.
