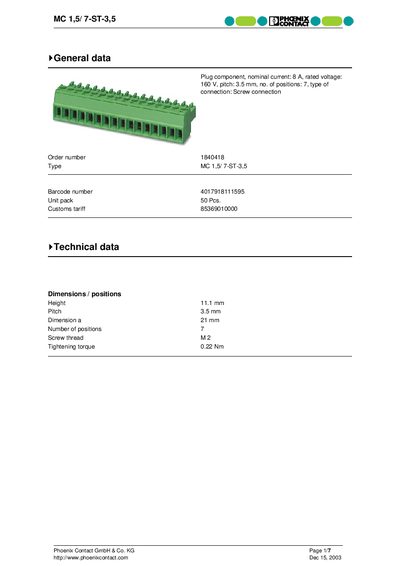

This document is about the technical data of a product called MC 1.5/7-ST-3.5. The product is a general data plug component with a nominal current of 8A, rated voltage of 160V, pitch of 3.5mm, number of positions of 7, and screw connection type.
The MC 1,5/7-ST-3,5 is a screw‑connection terminal block with 7 positions, designed for nominal current of 8 A and rated voltage of 160 V. It features a 3.5 mm pitch and a compact height of 11.4 mm.
The handbook provides detailed specifications, dimensional drawings, certification information, compatible accessories and related product references for quick selection and installation.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 7 |
| Height | 11.4 mm |
| Dimension a | 21 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
The terminal block is rated for a nominal current of 8 A.
It provides 7 positions for connections.
The pitch between contacts is 3.5 mm.
A tightening torque of 0.22 Nm is recommended.
