MC 1,5/ 4-G-3,81 is a connector produced by PHOENIX CONTACT. It has a nominal current of 8 A and a nominal voltage of 160 V. The pin spacing is 3.81 mm and the color is green. It is installed by soldering.
The Phoenix Contact MC 1,5/4‑G‑3,81 is a 4‑position green terminal block with a 3.81 mm pitch, rated for 8 A and 160 V. It is supplied in packs of 50 pieces and is RoHS/WEEE‑compliant.

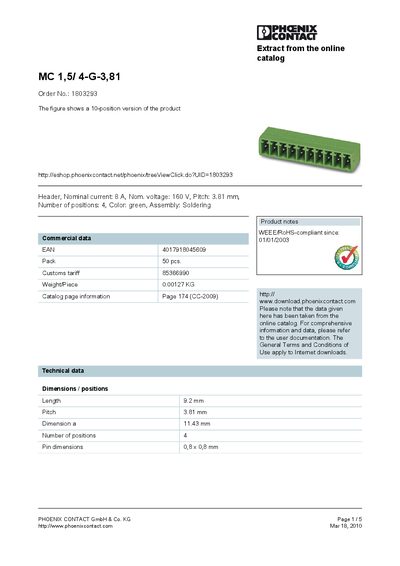

The document provides detailed dimensions, material specifications, certification information and a list of compatible accessories such as plug adapters, marker cards and keying profiles. Contact details for Phoenix Contact Germany are also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 4 |
| Length | 9.2 mm |
| Dimension a | 11.43 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Weight per piece | 0.00127 kg |
| EAN | 4017918045609 |
The terminal block is rated for a nominal current of 8 A.
It has 4 positions.
The pitch is 3.81 mm.
The header is intended for soldering assembly.
