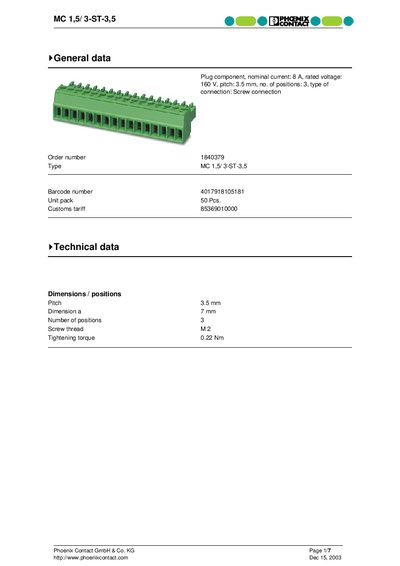

This document describes a product called MC 1,5/ 3-ST-3,5, which is a general data plug component with a nominal current of 8A, rated voltage of 160V, pitch of 3.5mm, 3 positions, and screw connection.
The MC 1,5/3-ST-3,5 is a screw‑connection plug with a 3.5 mm pitch, rated for 8 A and 160 V. It features three positions, a tightening torque of 0.22 Nm, and a compact 7 mm overall height.
The sheet also lists compatible accessories such as marker cards and screwdrivers, additional related products, and contact details for Phoenix Contact in Blomberg, Germany.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Connection type | Screw connection |
| Tightening torque | 0.22 Nm |
| Dimension a | 7 mm |
| Screw thread | M2 |
The plug is rated for a nominal current of 8 A.
It has three positions.
A tightening torque of 0.22 Nm is specified.
Phoenix Contact is located at Flachsmarktstr. 8, 32825 Blomberg, Germany.
