The product is a Phoenix Contact connector with a rated current of 41A, a rated voltage of 500V, a pitch of 7.62mm, and a green color. The product is assembled by soldering.
The PCV 5/3-G-7,62 is a 3‑position green connector designed for soldered assembly, with a 7.62 mm pitch and a nominal current rating of 41 A at 500 V. It is supplied in packs of 50 pieces and complies with WEEE/RoHS regulations.

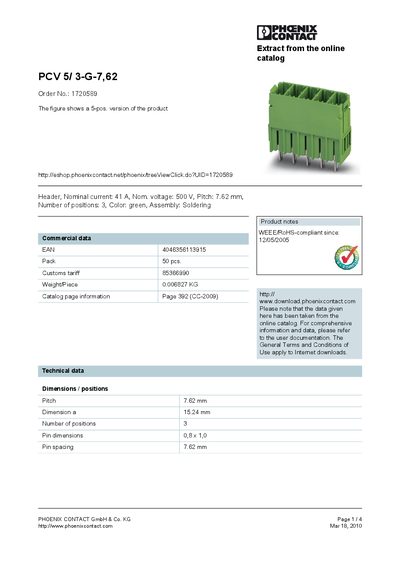

The leaflet lists detailed technical specifications, including dimensions, voltage and surge ratings, and certification approvals (CUL, UL). Diagrams and a dimensioned drawing are provided for mounting and drilling planning. For full product documentation, refer to Phoenix Contact’s online catalog.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Color | green |
| Assembly method | Soldering |
| Weight per piece | 0.006827 kg |
| Pack quantity | 50 pcs |
The order number is 1720589.
It has three positions.
The connector is rated for a nominal current of 41 A.
