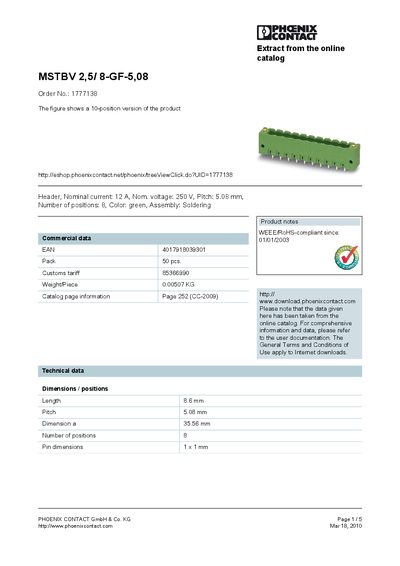

This document is about the product MSTBV 2,5/ 8-GF-5,08 from PHOENIX CONTACT GmbH & Co. KG. The product is a 10-position connector with a nominal current of 12A, nominal voltage of 250V, pitch of 5.08mm, and green color. It can be assembled through soldering.
The MSTBV 2,5/8-GF-5,08 is a green, 8‑position terminal block with a 5.08 mm pitch, rated for 12 A and 250 V. It is supplied for solder‑type assembly and complies with RoHS/WEEE regulations.
The handbook lists accessories such as keying caps, marker cards and coding sections, provides certification information (CB, CSA, CUL, UL, VDE‑PZI, etc.), and includes mechanical drawings and contact details for Phoenix Contact.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 8 |
| Color | green |
| Assembly type | Soldering |
| Weight per piece | 0.00507 kg |
| Dimension a | 35.56 mm |
The terminal block is rated for a nominal current of 12 A.
It provides 8 positions.
The pitch is 5.08 mm.
The product is certified by CB, CSA, CUL, GL, GOST, RS, UL and VDE‑PZI.
