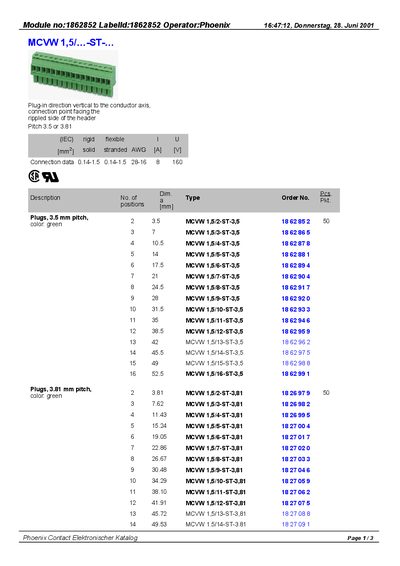

The document describes a plug-in module with a vertical direction to the conductor axis and a connection point facing the rippled side of the header. The plug has a pitch of 3.5mm or 3.81mm and can accommodate rigid solid wires ranging from 0.14mm2 to 1.5mm2 and flexible stranded wires ranging from 0.14mm2 to 1.5mm2. It has a rated current of 8A and a rated voltage of 160V. The plug is available in green color and can be selected with 2 to 16 positions.
The document provides technical specifications for the Phoenix Contact module 1862852, including pitch options of 3.5 mm or 3.81 mm, green‑colored plugs, and a range of position counts. It lists part numbers, dimensions, and connection data in accordance with IEC/DIN standards.
Additional information covers available accessories such as a screwdriver and a marker card, as well as order numbers and approval data (UL, CSA). The handbook is intended for quick reference when selecting and ordering the module. This manual is written in German.
| Pitch | 3.5 mm or 3.81 mm |
|---|---|
| Plug color | green |
| Number of positions | 10‑15 |
| Order number | 1862852 |
The module is offered with a pitch of 3.5 mm or 3.81 mm.
The plugs are green.
A screwdriver (0.4 × 2.5 × 80 mm blade, 160 mm length) and a marker card with 14 pins are listed as accessories.
