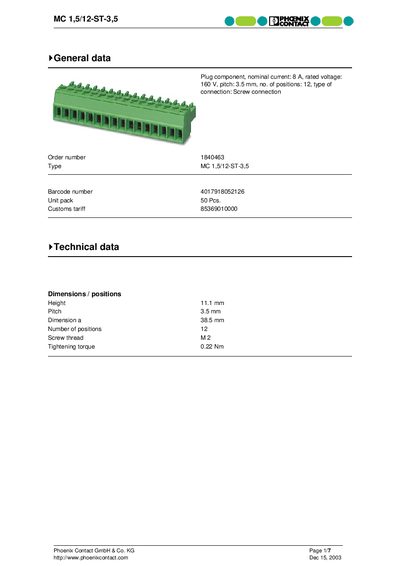

MC 1,5/12-ST-3,5 is a plug component produced by Phoenix Contact. Its rated current is 8 A, rated voltage is 160 V, pitch is 3.5 mm, number of positions is 12, and connection type is screw connection.
The MC 1,5/12-ST-3,5 is a screw‑connection terminal block from Phoenix Contact. It is designed for nominal currents of 8 A and rated voltages of 160 V, with a 3.5 mm pitch and 12 positions.
The handbook provides detailed technical data, dimensional drawings, certification information, a list of compatible accessories (cable housing, marker pens, marker cards, screwdriver) and references to additional product variants. Ordering numbers and contact details for Phoenix Contact are also included.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 12 |
| Height | 11.4 mm |
| Overall length (dimension a) | 33.5 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
The terminal block is rated for a nominal current of 8 A.
It has 12 positions.
