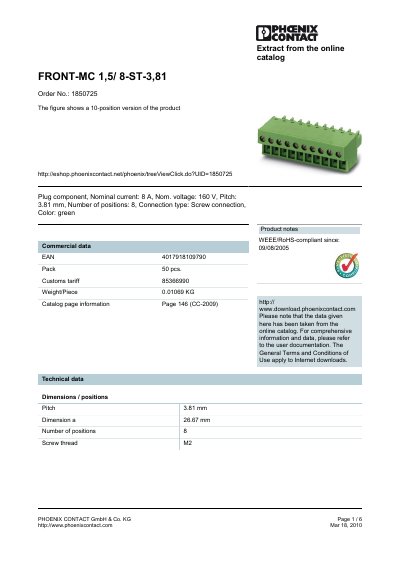

This product is PHOENIX CONTACT FRONT-MC 1,5/ 8-ST-3,81, a plug-in component with a nominal current of 8 A, a nominal voltage of 160 V, a pitch of 3.81 mm, 8 positions, a screw connection type, and a green color.
The FRONT-MC 1.5/8-ST-3.81 is an 8‑position plug component with a screw‑type connection, designed for industrial electrical systems. It supports a nominal current of 8 A and a nominal voltage of 160 V, with a terminal pitch of 3.81 mm.
The datasheet lists detailed technical data such as tightening torque (0.22‑0.25 Nm), insulating material group I, rated surge voltage of 2.5 kV, dimensions (26.67 mm height), weight (0.01069 kg per piece), and certifications (CB, CSA, CUL, UL, VDE‑PZI). It also includes accessory part numbers and ordering information.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 8 |
| Connection type | Screw connection |
| Insulating material group | I |
| Rated surge voltage | 2.5 kV |
| Tightening torque (min) | 0.22 Nm |
| Tightening torque (max) | 0.25 Nm |
| Dimension a (height) | 26.67 mm |
| Weight per piece | 0.01069 kg |
| Certifications | CB, CSA, CUL, UL, VDE‑PZI |
The nominal current rating is 8 A.
The terminal pitch is 3.81 mm.
The tightening torque should be between 0.22 Nm (minimum) and 0.25 Nm (maximum).
It is certified by CB, CSA, CUL, UL, and VDE‑PZI.
