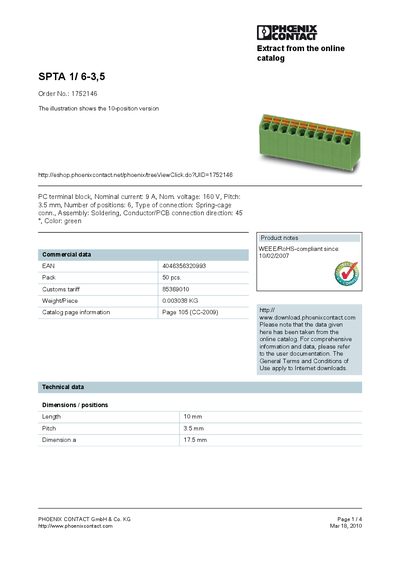

This PDF file is about the SPTA 1/ 6-3,5 terminal block from PHOENIX CONTACT GmbH & Co. KG.
The SPTA 1/6-3.5 is a spring‑cage terminal block with a 3.5 mm pitch, six positions and a nominal current of 9 A at 160 V. The document lists ordering details, commercial data and compliance information.
Technical specifications such as length, rated surge voltage, insulating material group and certification (UL, CUL) are provided, along with dimensional drawings and a drilling plan for PCB assembly.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| RoHS compliance date | 10/02/2007 |
The nominal current rating is 9 A.
It has six positions.
The pitch is 3.5 mm.
Yes, it has been RoHS compliant since 10 /02 /2007.
