MC 1,5/ 4-STF-3,81 is a plug component produced by PHOENIX CONTACT with a rated current of 8 A, a rated voltage of 160 V, screw connection and a green color.
The MC 1,5/4-STF-3,81 is a green screw‑connection terminal block with a 3.81 mm pitch and four positions. It is rated for 8 A nominal current and 160 V nominal voltage.

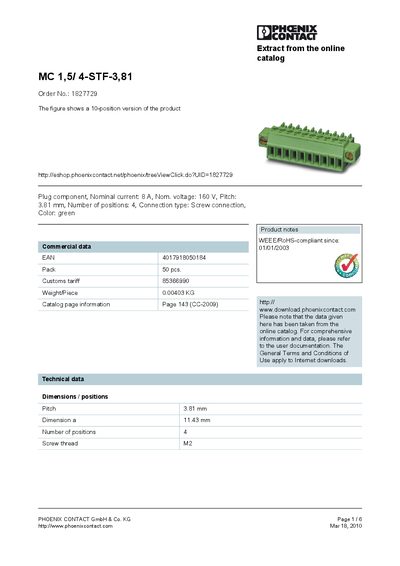

The leaflet provides detailed specifications, tightening torque values, approved certifications and a list of compatible accessories and part numbers.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 4 |
| Color | green |
| Weight per piece | 0.00403 kg |
The terminal block is rated for a nominal current of 8 A.
The pitch of the terminal block is 3.81 mm.
It has four positions.
Each unit weighs 0.00403 kg.
