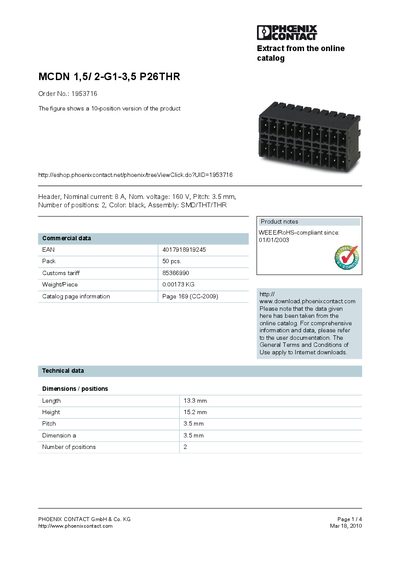

MCDN 1,5/ 2-G1-3,5 P26THR is a connector from PHOENIX CONTACT. Its rated current is 8A, rated voltage is 160V, pin spacing is 3.5mm, product color is black, and the package form is SMD/THT/THR.
The MCDN 1,5/2‑G1‑3,5 P26THR is a 2‑position terminal block with a 3.5 mm pitch, rated for 8 A nominal current and 160 V nominal voltage. Dimensions are 13.3 mm (length) by 15.2 mm (height) and it weighs 0.00173 kg per piece.
The sheet also lists accessories, certification details (UL, CUL), and compliance information such as WEEE/RoHS status since 01/01/2003. Ordering information and the manufacturer’s address are provided for reference.
| Nominal current | 8 A per position |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Length | 13.3 mm |
| Height | 15.2 mm |
| Weight per piece | 0.00173 kg |
| EAN | 4017918919245 |
| WEEE/RoHS compliance date | 01/01/2003 |
The nominal current is 8 A per position.
The pitch is 3.5 mm.
It has 2 positions.
Each piece weighs 0.00173 kg.
