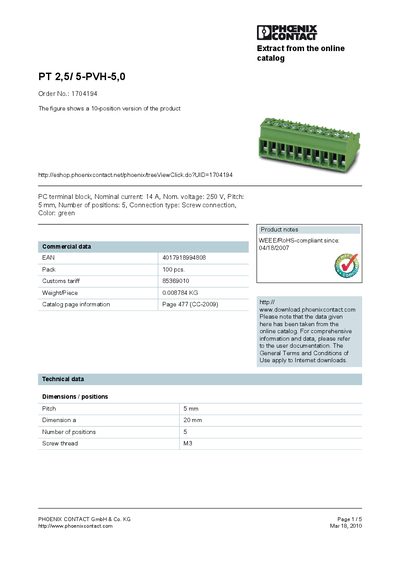

This document describes the features and characteristics of the PC terminal block product PT 2,5/ 5-PVH-5,0 from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, number of positions, connection type, etc.
The PT 2,5/5-PVH-5,0 is a 5‑position terminal block with a 5 mm pitch, designed for screw‑type connections. It is rated for 14 A nominal current and 250 V nominal voltage, and is supplied in a green housing.
The sheet provides detailed technical data such as tightening torque (0.45 Nm min / 0.5 Nm max), weight (0.008784 kg per piece), surge voltage ratings (4 kV), and certification information (CUL, UL). Diagrams and derating curves are also included.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 5 |
The terminal block is rated for a nominal current of 14 A.
The pitch between contacts is 5 mm.
Apply a tightening torque of 0.45 Nm minimum and 0.5 Nm maximum.
