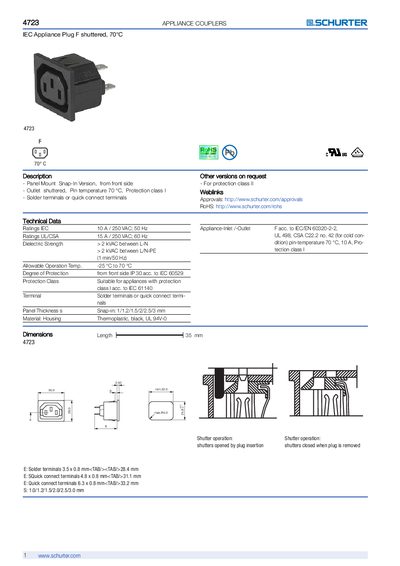

IEC Appliance Plug F shuttered, 70°C 4723 F 70° C is produced by Schurter. It is a panel mounted, snap-in type from the front side, with shuttered outlet, pin temperature of 70°C, protection class I, and solder terminals or quick connect terminals.
The SCHURTER 4723 series offers panel‑mount snap‑in appliance couplers with a 70 °C pin temperature and protection class according to IEC 61140. Ratings are IEC 10 A / 250 VAC (50 Hz) and UL/CSA 15 A / 250 VAC (60 Hz) with dielectric strength over 2 kV AC. The housings are made of black thermoplastic (UL 94V‑0) and are rated for operation from –25 °C to 70 °C with IP30 front‑side protection.
Variants are available with quick‑connect or solder terminals in several panel‑thickness options (1 mm to 3 mm). Detailed dimensions for each terminal type are listed, and accessories such as cord‑retaining kits and assorted covers can be ordered separately.
| IEC Rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 15 A / 250 VAC, 60 Hz |
| Dielectric Strength | > 2 kV AC between L‑N |
| Pin Temperature | 70 °C |
| Operating Temperature Range | -25 °C to 70 °C |
| Degree of Protection (Front) | IP30 |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
| Panel Thickness Options | 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm |
| Quick‑Connect Terminal Size | 4.8 × 0.8 mm (or 6.3 × 0.8 mm) |
| Solder Terminal Size | 3.8 × 0.8 mm |
They are suitable for appliances with protection class according to IEC 61140.
Panel thicknesses of 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm and 3 mm are available.
The couplers can operate from –25 °C up to 70 °C.
