This document describes Schurter's power entry modules with line filters. The modules are available in standard and medical versions, providing line filter and inlet protection. They feature an ultra-compact design and all single elements are pre-wired. The modules are qualified for use in equipment according to IEC/EN 60950 standard.

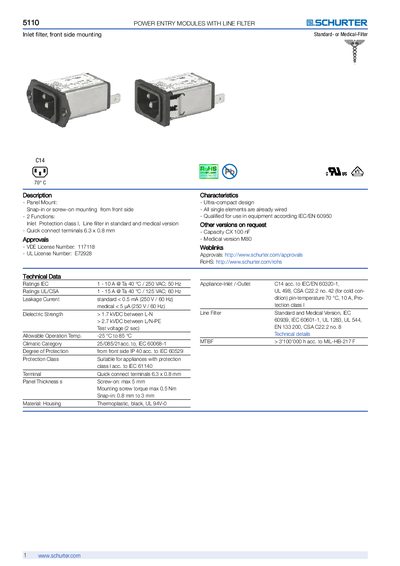

This handbook describes the SCHURTER 5110 power entry module with line filter, covering both standard and medical versions. It explains the ultra‑compact panel‑mount design, front‑side snap‑in or screw‑on mounting, and quick‑connect terminals.
Technical data such as rated current, leakage current, dielectric strength, operating temperature, and IP protection are listed, together with dimensions, variant part numbers, and accessory options like assorted covers and cord retaining kits.
| Rated Current (IEC) | 1‑10 A |
|---|---|
| Rated Current (UL/CSA) | 1‑15 A |
| Leakage Current (standard) | <0.5 mA |
| Leakage Current (medical) | <5 µA |
| Dielectric Strength (standard) | >1.7 kVDC |
| Operating Temperature | -25 °C to 85 °C |
| Degree of Protection | IP40 |
| Panel Thickness (Screw‑on) | max 5 mm |
| Mounting Screw Torque | max 0.5 Nm |
| Quick‑Connect Terminal Size | 6.3 × 0.8 mm |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
Both snap‑in and screw‑on front‑side mounting are supported.
The front side is protected to IP40.
