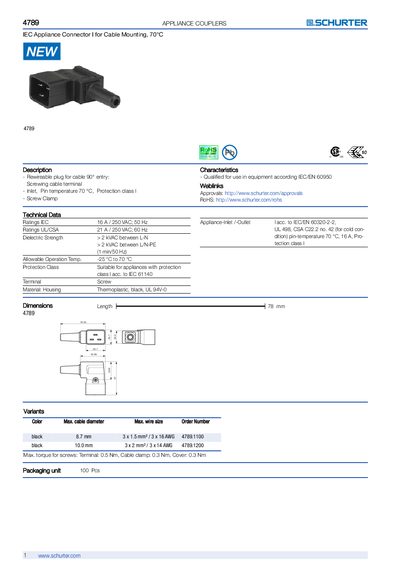

This is a IEC appliance connector I for cable mounting, 70°C data sheet, model number 4789.
The Schurter 4789 is a rewireable IEC appliance connector designed for cable mounting with a 90° entry. It complies with IEC/EN 60950 and is suitable for appliances requiring a protection class according to IEC 61140.
Technical data include IEC and UL/CSA current ratings, dielectric strength over 2 kV, operating temperature range from –25 °C to 70 °C, and various cable and wire size options. Approvals and RoHS compliance are listed on Schurter's website.
| IEC rating | 16 A / 250 V, 50 Hz |
|---|---|
| UL/CSA rating | 21 A / 250 V, 60 Hz |
| Operating temperature range | -25 °C to 70 °C |
| Maximum torque for terminal screw | 0.5 Nm |
It is rated for 16 A at 250 V, 50 Hz according to IEC specifications.
The connector can operate from –25 °C up to 70 °C.
Approvals are listed on Schurter’s website and the product complies with RoHS.
