This product is a 5 x 20 mm finger grip horizontal mounting shock-safe fuseholder from Schurter. It has a PC1 safety rating, a rated voltage of 250 VAC, a rated current of 6.3 A, and a rated power acceptance of 1.6 W / 6.3 A @ Ta 23 °C. It has an IP40 protection rating and is suitable for appliances with protection class 1 or 2. It is suitable for use in temperatures between -40 °C and 85 °C and meets the IEC 60068-1 standard's 40/085/21 climatic category.
The SCHURTER Shock‑Safe Fuseholder 5×20 mm PC1 is a horizontal finger‑grip fuseholder designed for PC1 shock‑safe category applications. It complies with IEC 60127‑6 and offers a rated voltage of 250 VAC and a continuous current rating of 6.3 A.

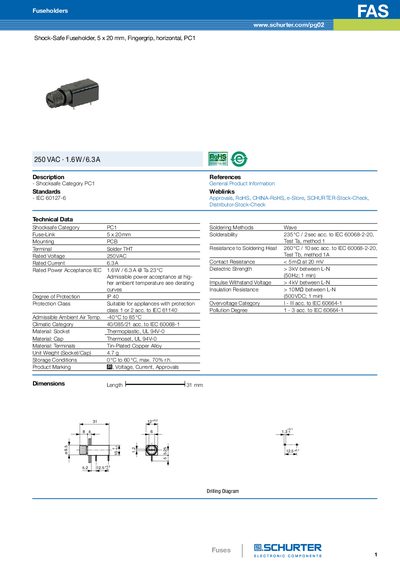

Key features include an IP40 protection class, a temperature operating range of –40 °C to 85 °C, and robust construction with tin‑plated copper alloy terminals. The datasheet provides detailed technical data, derating curves, and packaging information for easy integration into electronic assemblies.
| Rated Voltage | 250 VAC |
|---|---|
| Rated Current | 6.3 A |
| Contact Resistance | < 5 mΩ at 20 mV |
| Power Dissipation | 1.6 W @ 23 °C |
| Operating Temperature Range | -40 °C to 85 °C |
| Dielectric Strength (L‑N) | > 3 kV (80 Hz, 1 min) |
| Shock‑Safe Category | PC1 |
| Terminal Material | Tin‑Plated Copper Alloy |
The fuseholder is rated for 250 VAC.
It can carry up to 6.3 A continuously.
It is suitable for ambient temperatures from –40 °C to 85 °C.
