Schurter 55112200 is a power entry module with line filter produced by Schurter company. It can be mounted on the front or rear side and can be selected for protection class I or II. It is suitable for electrical appliances that need protection class I or II. The product has the characteristics of small size and high performance.

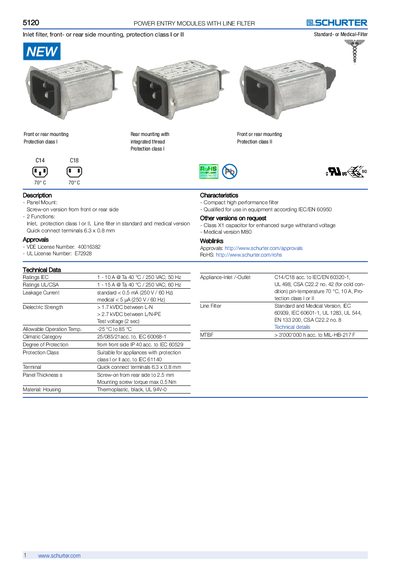

The SCHURTER 5120 series provides compact, high‑performance power entry modules with integrated line filtering for both standard and medical applications. Modules can be mounted on the front or rear of a panel and are available in several current ratings and filter‑type options.
The document lists electrical ratings, leakage currents, dielectric strength, environmental limits, and mechanical dimensions, as well as part numbers for each variant and optional accessories such as covers and cord‑retaining kits.
| Rated Current (IEC) | 1‑10 A @ Ta 40 °C / 250 VAC, 50 Hz |
|---|---|
| Rated Current (UL/CSA) | 1‑15 A @ Ta 40 °C / 250 VAC, 60 Hz |
| Leakage Current (standard) | < 0.5 mA (250 V / 60 Hz) |
| Leakage Current (medical) | < 5 pA (250 V / 60 Hz) |
| Dielectric Strength L‑N | > 1.7 kVDC |
| Operating Temperature | -25 °C to 85 °C |
| Protection Class | I or II (IEC 61140) |
| Degree of Protection | IP40 (front side) |
| Terminal Type | Quick‑connect 6.3 × 0.8 mm |
The IEC version is rated for 1 to 10 A at a test temperature of 40 °C, 250 VAC and 50 Hz.
The medical version limits leakage current to less than 5 pA at 250 V, 60 Hz.
The module must withstand more than 1.7 kVDC between line and neutral.
The device can operate from –25 °C up to 85 °C.
