DC11 is a power entry module launched by Schneider Electric, which can be mounted on the front or rear panels or inserted into the front panel. It has quick connect terminals, rated current of 10A/250VAC, insulation strength of 2.5kVAC and protection class of IP40, and is suitable for appliances with protection class I.

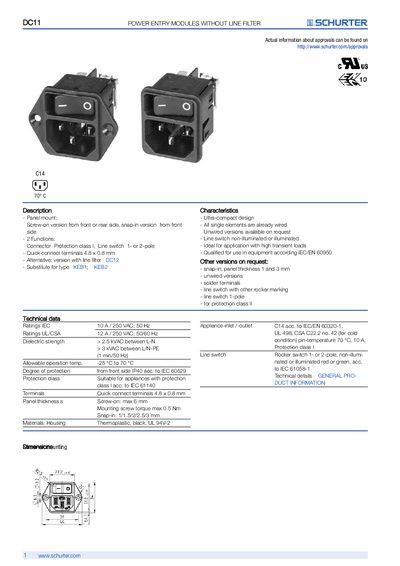

This handbook describes the Schurter DC11 power entry modules that are supplied without an internal line filter. It covers panel‑mount and snap‑in versions, line switch options (illuminated or non‑illuminated, 1‑ or 2‑pole), and available accessories.
Key technical data include current ratings, dielectric strength, operating temperature range, protection class, terminal dimensions, and housing material. Order numbers for the various mounting and switch configurations are also listed.
| Rated current (IEC) | 10 A / 250 VAC; 50 Hz |
|---|---|
| Rated current (UL/CSA) | 12 A / 250 VAC; 50/60 Hz |
| Dielectric strength (L‑N) | > 2.5 kV AC |
| Dielectric strength (L/N‑PE) | > 3 kV AC (1 min/50 Hz) |
| Operating temperature range | -25 °C to 70 °C |
| Degree of protection | IP40 |
| Quick‑connect terminal size | 4.8 × 0.8 mm |
| Panel thickness (snap‑in) | 1 mm to 3 mm |
| Mounting screw torque | max 0.5 Nm |
| Housing material | Thermoplastic, black, UL 94V‑2 |
The module can operate from –25 °C up to 70 °C.
The module has an IP40 protection class.
