This document introduces a type-indexed power entry module with line filter, suitable for standard and medical versions. The module features a compact design with optimal shielding, and all single elements are already wired. It is ideal for applications with high transient loads and meets the IEC/EN 60950 standard. It has various technical specifications and versions available.

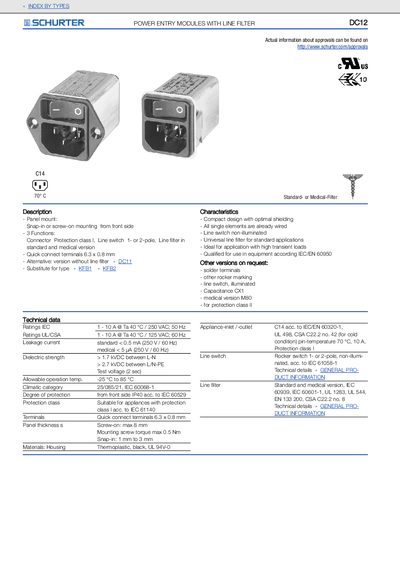

This handbook describes Schurter's DC12 power entry modules equipped with line filters. It covers both the standard and medical (M5) versions, detailing their electrical ratings, protection classes, and filter characteristics.
The document lists mounting options (snap‑in or screw‑on), mechanical dimensions, terminal types, and a full set of variant order numbers. Technical data such as rated current, leakage current, dielectric strength, operating temperature range, and climatic category are also provided.
| Rated current (IEC) | 1‑10 A @ Ta 40 °C / 250 VAC, 50 Hz |
|---|---|
| Rated current (UL/CSA) | 1‑10 A @ Ta 40 °C / 125 VAC, 60 Hz |
| Leakage current (standard) | < 0.5 mA (250 V / 60 Hz) |
| Leakage current (medical) | < 5 pA (250 V / 60 Hz) |
| Dielectric strength L‑N | > 1.7 kVDC |
| Dielectric strength L/N‑PE | > 2.7 kVDC |
| Operating temperature range | -25 °C to 85 °C |
| Climatic category | 25/085/21, IEC 60068‑1 |
| Degree of protection | IP40 (IEC 60529) |
| Terminal type | Quick‑connect 6.3 × 0.8 mm |
The modules are rated for operation from –25 °C up to 85 °C.
