Schurter 00990099 is a module for use in equipment with 2 outlets and 3.2 x 0.8 mm solder terminals. It has a black housing, UL 94V-0 rating and complies with IEC/EN 60950 standard.

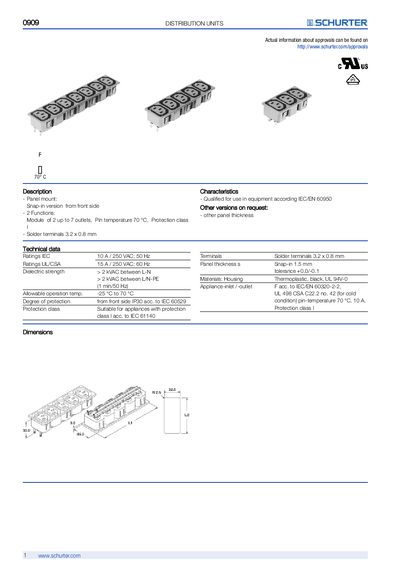

The SCHURTER 0909 is a panel‑mount, snap‑in distribution unit designed for equipment qualified under IEC/EN 60950. It provides 2 to 7 outlets, with a pin temperature rating of 70 °C and a protection class suitable for appliances.
Technical data include IEC rating 10 A / 250 VAC (50 Hz), UL/CSA rating 15 A / 250 VAC (60 Hz), dielectric strength of 2 kVAC, operating temperature range –25 °C to 70 °C, panel thickness 1.5 mm, and solder terminals sized 3.2 × 0.8 mm. Various variants are offered with different outlet counts and dimensions.
| IEC rating | 10 A / 250 VAC; 50 Hz |
|---|---|
| UL/CSA rating | 15 A / 250 VAC; 60 Hz |
| Dielectric strength | 2 kVAC between L‑N and L/N‑PE (1 min/50 Hz) |
| Operating temperature range | -25 °C to 70 °C |
| Protection class | Suitable for appliances, IEC 61140 |
| Panel thickness (snap‑in) | 1.5 mm |
| Terminal size | 3.2 × 0.8 mm |
| Housing material | Thermoplastic, black, UL 94V‑0 |
| Maximum number of outlets | Up to 7 |
It can be configured with 2 up to 7 outlets.
The unit can operate from –25 °C to 70 °C.
The snap‑in version has a panel thickness of 1.5 mm.
