The document provides technical specifications and features of the APPLIANCE COUPLERS 66660000--33. This product is suitable for appliances with protection class I and has a rated current of 10A/250VAC and UL/CSA 15A/250VAC. It is made of thermoplastic material with a black housing color and complies with UL 94V-0 fire protection rating. The product offers solder terminals or quick connect terminals for wiring. The dimensions of the product are 24.1mm or 26.5mm or 27.5mm.
The 6600-3 appliance coupler from SCHURTER is designed for panel‑mount or screw‑on installation in appliances. It is offered with solder terminals or quick‑connect terminals and can be ordered in various variants.

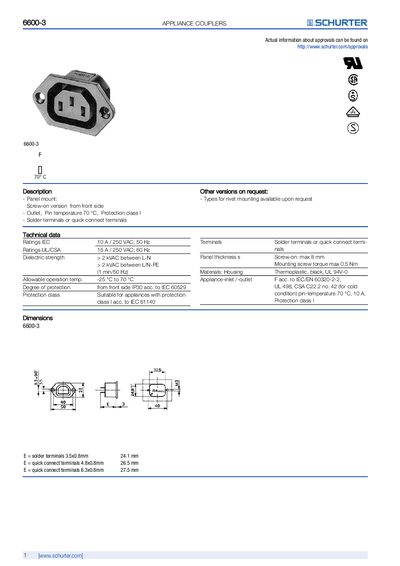

The leaflet lists the electrical ratings, dielectric strength, mechanical dimensions, protection class, and environmental limits, as well as mounting torque and panel‑thickness specifications for the different versions.
| IEC rating current / voltage | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA rating current / voltage | 15 A / 250 VAC, 60 Hz |
| Dielectric strength | ≥ 2 kV AC between L‑N and L‑N‑PE |
| Maximum panel thickness (screw‑on) | 8 mm |
| Mounting screw torque | 0.5 Nm max |
| Operating temperature range | -25 °C to 70 °C |
| Degree of protection (front side) | P30 (IEC 60529) |
| Protection class | F (IEC/EN 60320‑2‑2) |
| Solder terminal size | 3.5 × 0.8 mm |
| Quick‑connect terminal size | 4.8 × 0.8 mm or 6.3 × 0.8 mm |
It can be used from –25 °C up to 70 °C.
The IEC rating is 10 A at 250 VAC, 50 Hz.
It has a P30 protection rating according to IEC 60529.
It is offered with solder terminals (3.5 × 0.8 mm) or quick‑connect terminals (4.8 × 0.8 mm or 6.3 × 0.8 mm).
