OGD-SMD is a low profile fuse block produced by Schurter. It accepts 5x20 or 6.3x32 fuse-links, and can be fixed by screws or rivets. It is UL and CSA approved.
The SCHURTER OGD‑SMD is a low‑profile fuseholder designed for 5×20 mm or 6.3×32 mm fuse‑links. It can be mounted on a PCB using solder, screw or rivet methods and is available with optional covers.

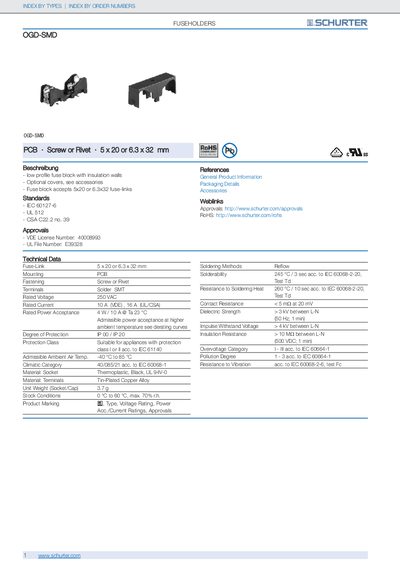

The document lists electrical ratings, mechanical dimensions, material specifications, environmental limits and the various standards and approvals (IEC, UL, CSA, VDE) that the component complies with.
| Rated Voltage | 250 VAC |
|---|---|
| Rated Current | 10 A (VDE), 16 A (UL/CSA) |
| Rated Power Acceptance | 4 W/10 A @ 23 °C |
| Contact Resistance | < 5 mΩ at 20 mV |
| Dielectric Strength | > 3 kV (L‑N, 50 Hz, 1 min) |
| Impulse Withstand Voltage | > 4 kV (L‑N) |
| Degree of Protection | IP00 / IP20 |
| Insulation Resistance | > 10 MΩ (L‑N, 500 VDC, 1 min) |
| Admissible Ambient Temperature | -40 °C to 85 °C |
| Material (Socket) | Thermoplastic, Black, UL 94V‑0 |
| Material (Terminals) | Tin‑Plated Copper Alloy |
The rated voltage is 250 VAC.
It complies with IEC 60127‑6, UL 512, CSA 022.2 no. 39, and has VDE and UL license numbers.
The component can operate from –40 °C up to 85 °C.
Contact resistance is less than 5 mΩ at 20 mV.
