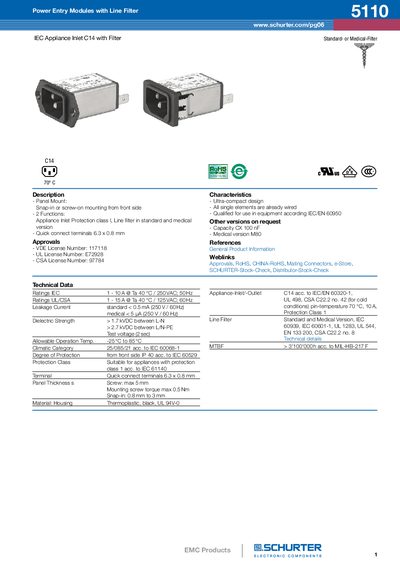

IEC Appliance Inlet C14 with Filter 5110 is a power entry module with line filter from Schurter, qualified for use in equipment according IEC/EN 60950
The SCHURTER 5110 is a compact power entry module with an IEC C14 inlet and integrated line filter. It is offered in both standard and medical (M80) versions and features quick‑connect terminals for easy installation.
The document lists approvals (VDE, UL, CSA), electrical ratings, leakage current limits, dielectric strength, operating temperature range, IP40 protection, MTBF over 3 million hours, dimensions, and a full set of variant part numbers for screw‑on and snap‑in mounting options.
| Rated Current (IEC) | 1‑10 A @ 250 VAC, 50 Hz |
|---|---|
| Rated Current (UL/CSA) | 1‑15 A @ 125 VAC, 60 Hz |
| Leakage Current (standard) | < 0.5 mA (250 V / 60 Hz) |
| Leakage Current (medical) | < 5 pA (250 V / 60 Hz) |
| Dielectric Strength L‑N | > 1.7 kVDC |
| Dielectric Strength L/N‑PE | > 2.7 kVDC |
| Operating Temperature | -25 °C to 85 °C |
| IP Protection | IP40 |
| MTBF | > 3,100,000 h |
It is approved under VDE License No. 117118, UL License No. £72928, and CSA License No. 97784.
The module is offered in a standard version and a medical version (M80).
The IEC rating is 1 to 10 A at 250 VAC, 50 Hz.
It has an IP40 protection class according to IEC 60529.
