PPGG44 is a fuse holder for protective category PC2 produced by Schneider Electric. The product has a rated voltage of 250 VAC and a rated current of 10 A (VDE). The mounting method is PCB and the terminals are solder THT. The product uses black thermoplastic material and the rated ambient temperature is -40°C to 85°C.

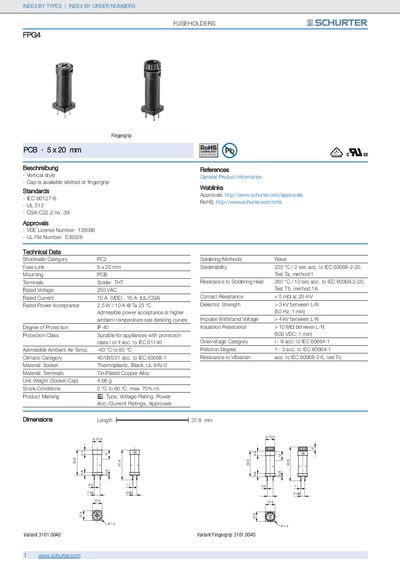

The FPG4 is a vertical‑style fuseholder offered in slotted or finger‑grip caps. It meets a range of safety and performance approvals including IEC 60127‑6, RoHS, UL 512, CSA 622.2, and VDE License No. 129098. Rated at 250 VAC, it supports 10 A (VDE) or 16 A (UL/CSA) with a contact resistance below 5 mΩ at 20 mV.
Technical data include a dielectric strength of > 3 kV (L‑N), impulse withstand voltage > 4 kV (L‑N), IP40 protection, operating temperature from –40 °C to 85 °C, and a unit weight of 4.66 g. The socket is made of UL‑94V‑0 thermoplastic and the terminals are tin‑plated copper alloy. Packaging is available in bulk (100 pcs).
| Rated Voltage | 250 VAC |
|---|---|
| Rated Current | 10 A (VDE), 16 A (UL/CSA) |
| Contact Resistance | <5 mΩ at 20 mV |
| Dielectric Strength | > 3 kV L‑N |
| Impulse Withstand Voltage | > 4 kV L‑N |
| Degree of Protection | IP40 |
| Insulation Resistance | > 10 MΩ L‑N |
| Operating Temperature Range | -40 °C to 85 °C |
| Socket Material | Thermoplastic, Black, UL 94V‑0 |
| Terminal Material | Tin‑Plated Copper Alloy |
| Unit Weight | 4.66 g |
| Length | 137.8 mm |
The fuseholder is rated for 10 A according to VDE and 16 A according to UL/CSA standards.
The device has an IP40 protection class.
It is suitable for ambient temperatures from –40 °C to 85 °C.
