GMSTB 2,5/ 3-ST-7,62 is a plug component from PHOENIX CONTACT with a rated current of 12A, a rated voltage of 400V, a pitch of 7.62mm, 3 positions and a screw connection. It is colored green.
The GMSTB 2,5/3-ST-7,62 is a green, screw‑connection plug component with a 7.62 mm pitch and three positions. It is rated for a nominal current of 12 A and a nominal voltage of 400 V, with a maximum load current of 12 A and a weight of 0.005916 kg per piece.

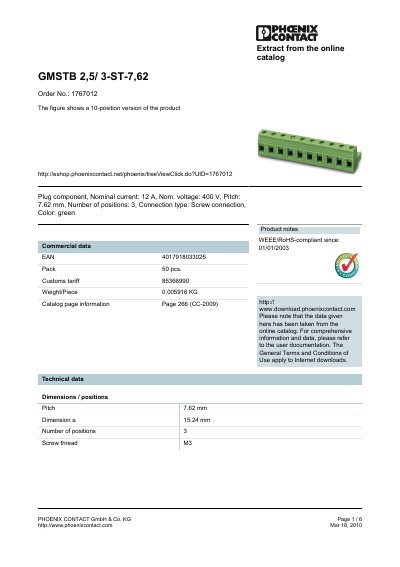

The datasheet lists detailed electrical specifications, tightening torque values (0.5–0.6 Nm), insulating material class, surge voltage ratings, and approved conductor cross‑sections. It also provides certification information (CB, CSA, CUL, GOST, UL, VDE‑PZI) and references accessories and additional product variants.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Weight per piece | 0.005916 kg |
| Rated surge voltage (III/3) | 6 kV |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The plug is rated for a nominal current of 12 A.
The pitch is 7.62 mm.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
A tightening torque of 0.5 Nm minimum and 0.6 Nm maximum is recommended.
