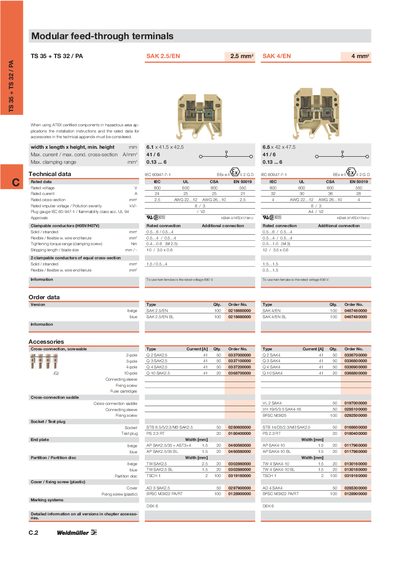

TS 35 + TS 32 / PA Modular feed-through terminals
The TS 35 + TS 32/PA series are modular feed‑through terminals designed for use in hazardous ATEX areas. The handbook lists the technical data, approved standards and installation requirements for each version.
Detailed specifications include dimensions, rated voltage and current, clamping ranges, torque settings and accessory part numbers. Order codes, colour options and mounting accessories are also provided for quick reference.
| Dimensions (mm) | 6.1 x 41.5 x 42.5 |
|---|---|
| Maximum current / cross‑section | 41 A / 6 mm² |
| Maximum clamping range | 0.13 … 6 mm |
| Tightening torque (clamping screw) | 0.4 … 0.6 Nm (M25) |
| Rated voltage | 800 V (up to 600 V for other versions) |
| Rated current | 125 A (SAK 35/EN) |
| Rated cross‑section | 36 AWG (≈0.13 mm²) |
| Maximum current / cross‑section (SAK 35/EN) | 150 A / 50 mm² |
| Maximum clamping range (SAK 35/EN) | 2.5 … 50 mm |
| Tightening torque (SAK 35/EN) | 4.0 … 5.0 Nm (M8) |
| Dimensions (mm) – SAK 35/EN | 18 x 58 x 63.5 |
| Approvals | WE KEMA 97ATEXA 798 U |
The terminals are rated for up to 800 V (with lower‑voltage versions at 600 V).
The recommended tightening torque is between 4.0 Nm and 5.0 Nm (using an M8 screw).
They are approved according to WE KEMA 97 ATEX A 798 U.
The SAK 35/EN version can carry up to 125 A.
