TS 32 / KRG Fuse terminals

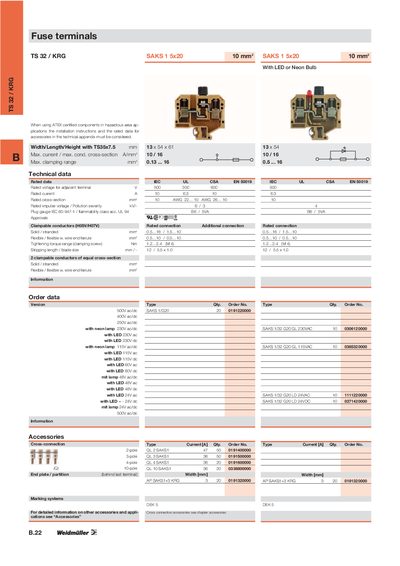

This handbook describes the Weidmuller B.22 TS 32 KRG fuse terminals, including their physical dimensions, electrical ratings, and approved standards. It is intended for engineers and installers who need detailed product data for planning and procurement.
The document lists technical data such as rated voltage, current, cross‑section, clamping range, tightening torque, and stripping length, as well as order numbers for various terminal configurations and accessories.
| Rated voltage (adjacent terminal) | 500 V, 300 V, 600 V |
|---|---|
| Rated current | 10 A, 63 A |
| Rated cross‑section | 10 AWG |
| Maximum clamping range | 0.13 … 16 mm |
| Tightening torque (clamping screw) | 1.2 – 2.4 Nm (M4) |
The terminals are rated for 10 A or 63 A depending on the version.
The terminals measure 13 mm wide, 54 mm long, and 61 mm high.
A torque of 1.2 to 2.4 Nm (M4) should be applied.
