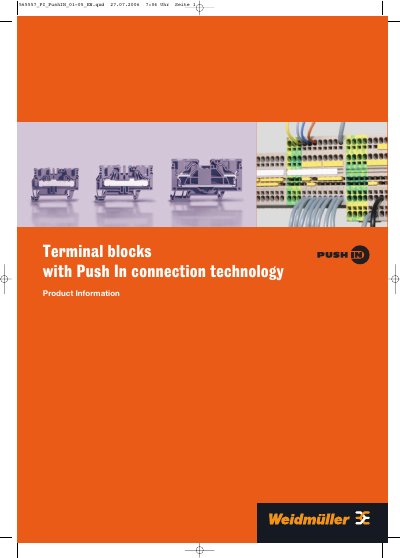

This document introduces terminal blocks with Push In connection technology. It includes different models of terminal blocks, such as feed-through terminals, modular PE terminals, double level terminals, etc. The Push In connection system is characterized by its simplicity, reliability, and time-saving wiring process.
The document presents Weidmüller’s Push In connection technology for terminal blocks, describing the P‑Series range and its benefits such as fast, tool‑free wiring and reliable, vibration‑resistant connections. It outlines the different terminal families – P‑Series, feed‑through, modular PE, double‑level, disconnect and installation terminals – together with their dimensions, current ratings and accessories.
Technical data tables give rated currents, cross‑section ranges, voltage ratings and mechanical dimensions for each terminal type, while the appendix lists ordering numbers and optional accessories like cross‑connection modules and mounting plates.
| Terminal width (PDU 2.5/4) | 5.1 mm |
|---|---|
| Maximum operating temperature | 120 °C |
It can reduce wiring time by up to 50 %, about 3.5 seconds per conductor.
No additional tools are needed; the conductor is simply pushed into the terminal.
