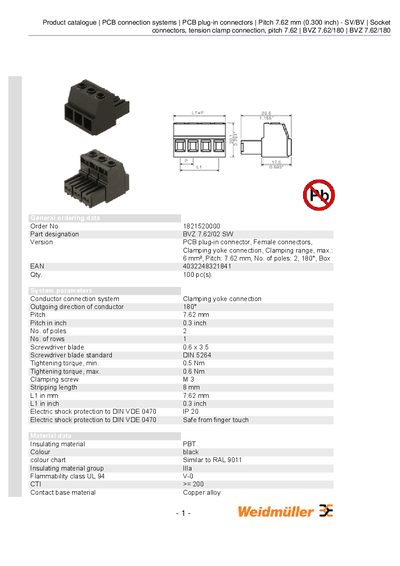

The BVZ 7.62/180 is a PCB plug-in connector with a 180° lead exit that can connect conductors from 0.2 to 6 mm². It has black PBT insulation with tin-plated copper alloy contact strips.
This catalogue presents the BVZ 7.62 series of PCB plug‑in connectors from Weidmuller. It covers mechanical dimensions, electrical ratings, material data and installation requirements for the SV/BV socket type with a 7.62 mm (0.300 inch) pitch.
Key data include a 2‑pole, 4‑row configuration, clamping range up to 6 mm, tightening torque between 0.5 Nm and 0.6 Nm, PBT insulation (UL 94 V‑0), copper‑alloy contacts and various voltage and current ratings. Approvals from US ME25 and other institutes are also listed.
| Pitch | 7.62 mm (0.300 inch) |
|---|---|
| Number of poles | 2 |
| Number of rows | 4 |
| Clamping range (max) | 6 mm |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Insulating material | PBT |
| Flammability class | UL 94 V‑0 |
| Contact base material | Copper alloy |
The connector has a pitch of 7.62 mm (0.300 inch).
It has 2 poles.
The recommended tightening torque is between 0.5 Nm and 0.6 Nm.
The connector uses PBT as the insulating material.
