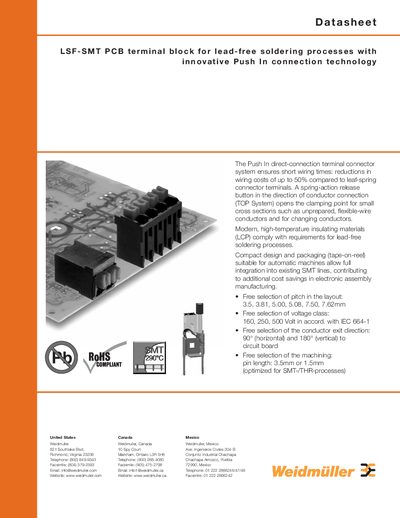

The Push In direct-connection terminal connector system ensures short wiring times: reductions in wiring costs of up to 50% compared to leaf-spring connector terminals
The LSF‑SMT series provides a push‑in direct‑connection terminal system that shortens wiring time and reduces costs for lead‑free soldering processes. It features a stainless‑steel spring for reliable contact force, copper alloy conductor rails for low voltage drop, and a compact tape‑on‑reel package suitable for automatic SMT lines.
Technical data include selectable pitch, voltage class, conductor direction, pin length, and rated current. Ordering tables list part numbers for each configuration, and the document also outlines safety features, packaging, and compliance with RoHS and lead‑free standards.
| Pitch options | 3.5, 3.81, 5.00, 5.08, 7.50, 7.62 mm |
|---|---|
| Voltage class | 160 V, 250 V, 500 V |
| Conductor direction | 90° (horizontal) or 180° (vertical) |
| Pin length | 1.5 mm or 3.5 mm |
| Rated current | 17.5 A (EO) / 10 A (UU) |
The terminals are supplied in a compact tape‑on‑reel package that is compatible with automatic SMT machines.
