This document provides information on various modular fuse terminals. These terminals are used for connecting and disconnecting electrical and electronic products. They are designed with a tension spring system to ensure safe and reliable connections. They also provide quick connection and disconnection and have high durability.

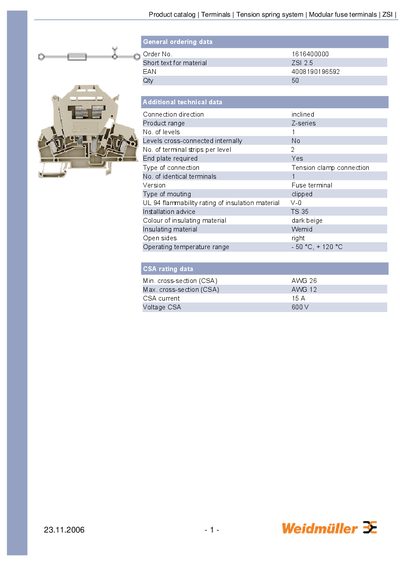

This four‑page catalog lists the general ordering data, connection types, and technical parameters for the ZSI 2.5 modular fuse terminals. It includes part numbers, cross‑section ranges, and approval information.
The document also gives detailed dimensions, temperature limits, and electrical ratings such as current, voltage, and power loss, helping engineers select the correct terminal for their applications.
| Operating temperature range | -50 °C to +120 °C |
|---|---|
| Current rating for indicator | 6 A |
| Operating voltage for indicator (max) | 500 V |
| Blade size | 0.6 × 3.5 mm |
| Height (lowest version) | 74 mm |
| Length | 79.5 mm |
| Width | 7.9 mm |
| Connection type | Tension clamp connection |
The terminal operates from –50 °C up to +120 °C.
The CSA rating is 15 A at 600 V.
It uses a tension clamp connection.
