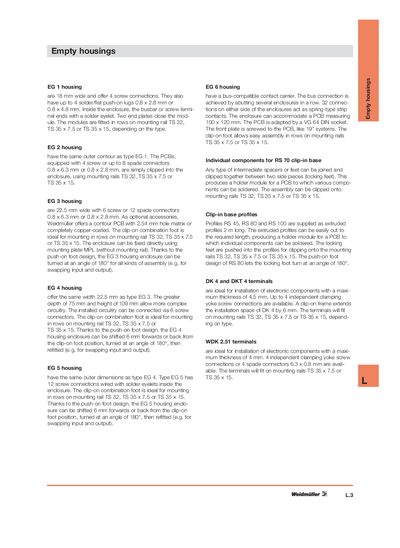

This document introduces the features and specifications of Weidmüller L.3 L series empty housings, including EG1, EG2, EG3 and EG4.
The leaflet describes a range of empty housings (EG1‑EG6) designed for Weidmuller terminal block systems. Each housing type offers a specific width, number of screw or spade connections, and optional push‑on lugs, allowing flexible assembly on mounting rails TS 32, TS 35 x 7.5 or TS 35 x 15.
Technical data such as dimensions, maximum power loss, IP protection class, tightening torque and PCB thickness are listed for each housing type, together with ordering numbers for frames, feet, plates and accessories. The document also covers related components like RS‑70 clip‑in bases, DK 4/DKT 4 and WDK 2.51 terminals.
| EG1 width | 18 mm |
|---|---|
| EG1 screw connections | 4 |
| EG3 total connections | 6 |
| EG3 max power loss | 15 W |
| EG3 IP protection | IP 20 |
| EG3 tightening torque | 0.4 … 0.8 Nm |
| EG3 PCB thickness | 1.0 (+ 0.2) mm |
The EG1 housing offers four screw connections and can also accommodate up to four solder or flat push‑on lugs.
All listed housings are rated IP 20.
