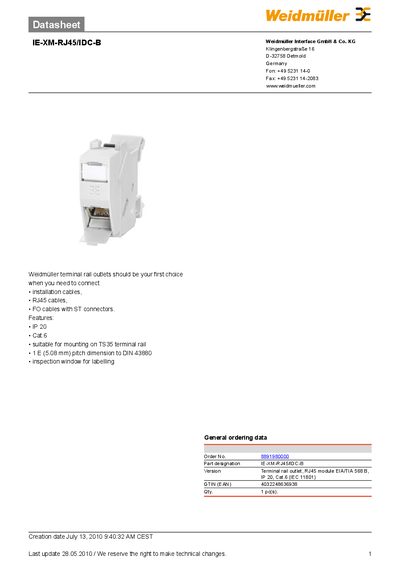

This datasheet provides detailed information on the IE-XM-RJ45/IDC-B product, including connection types, protection class, colour, and mounting method.
The IE-XM-RJ45/IDC-B is a terminal rail outlet module that combines RJ45 and IDC connections for easy integration on TS35 terminal rails. It is suitable for installation cables, RJ45 cables, and fiber‑optic cables with ST connectors.
Key features include IP20 protection, Category 6 compliance (IEC 11801), a 1E (5.08 mm) pitch dimension to DIN 43880, and a light‑grey PA 66 housing with UL 94 V‑0 rating. Technical data such as plugging cycles, temperature range, and approvals are listed for designers and installers.
| Cable category | Cat.6 (IEC 11801) |
|---|---|
| Mounting type | TS35 terminal rail |
| Pitch dimension | 1E (5.08 mm) to DIN 43880 |
| Plugging cycles | up to 750 cycles |
| Housing material | PA 66, UL 94 V‑0 |
| Order number | 8891980000 |
| GTIN | 4032248636938 |
It complies with Category 6 according to IEC 11801.
It is rated for up to 750 plugging cycles.
The device is designed for TS35 terminal rail mounting.
