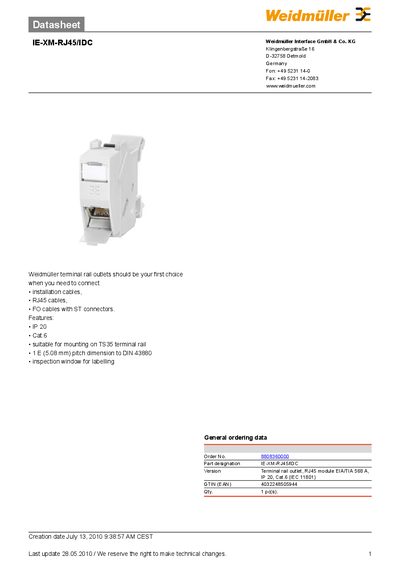

IE-XM-RJ45/IDC is a terminal rail outlet produced by Weidmüller Interface GmbH & Co. KG. It is suitable for connecting installation cables, RJ45 cables, and FO cables with ST connectors. It features IP20 protection class, Cat.6 (IEC 11801) category, etc.
The IE-XM-RJ45/IDC is a terminal rail outlet with an RJ45 module that complies with Cat.6 (IEC 11801) and offers IP20 protection. It is designed for mounting on TS35 terminal rails and includes an inspection window for labeling.
Technical data includes a PA 66 housing material (UL 94 V‑0), light‑grey color, RJ45 and IDC connections, 750 plugging cycles, and approvals from GERMLLOYD and GOSTME25. Ordering information and classification codes are also provided.
| Cable category | Cat.6 (IEC 11801) |
|---|---|
| Mounting type | TS 35 terminal rail |
| Pitch dimension | 1E (5.08 mm) to DIN 43880 |
| Inspection window | Yes |
| Housing material | PA 66, UL 94 V‑0 |
| Colour | Light grey |
| Plugging cycles | 750 cycles |
| Approvals | GERMLLOYD; GOSTME25 |
| Classification | eClass 5.1, eClass 6.0 |
It supports Cat.6 cables according to IEC 11801.
The device is rated for up to 750 plugging cycles.
It is designed for mounting on a TS 35 terminal rail.
