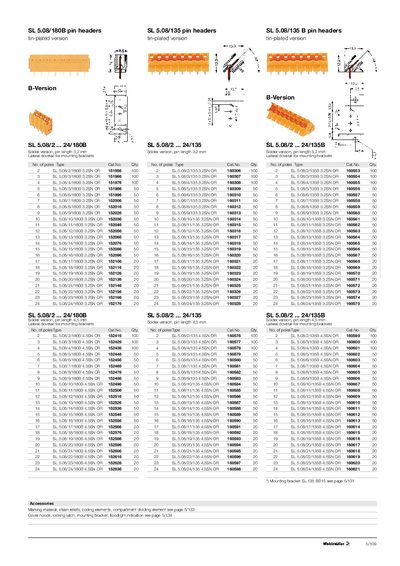

This is a product catalog of SL 5.08/135 pin headers tin-plated version and SL 5.08/135 B pin headers tin-plated version.
The SL 5.08 series pin headers from Weidmüller provide reliable connections for PCB applications. This tin‑plated version is offered in a range of pole counts (2‑24) and includes detailed technical data such as pitch, pin length, insulation material and temperature limits.
The document lists electrical specifications, derating curves for different ambient temperatures, and mechanical details like mounting brackets, clearance and creepage distances. Approvals and optional features (e.g., gold‑plating, alternative colours) are also referenced.
| Pitch | 5.08 mm |
|---|---|
| Pin length (tin‑plated version) | 3.2 mm / 4.5 mm |
| Insulation material | PBT |
| Temperature range | ‑20 °C … +100 °C |
| Flammability class | UL 94 V0 |
| Contact material | CuSn |
| Rated current (example 2‑pole, 180 B) | 12.43 A |
The pitch of the SL 5.08 series pin header is 5.08 mm.
It can operate from –20 °C up to +100 °C.
The connectors use PBT (polybutylene terephthalate) as the insulation material.
The housing meets UL 94 V0 flammability classification.
