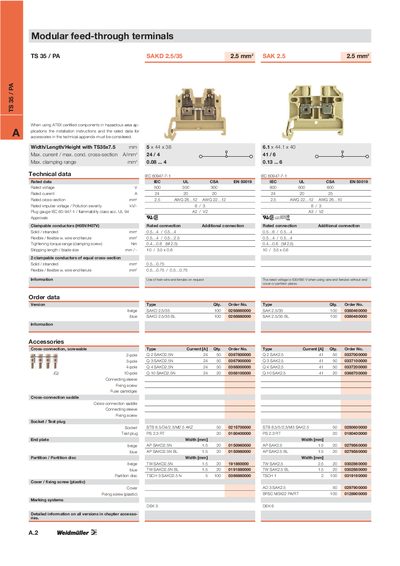

This document provides the technical data of TS 35 / PA modular feed-through terminals TS 35 / PA, including rated voltage, rated current, rated cross-section, rated impulse voltage, plug gauge, approvals, clampable conductors, tightening torque range, stripping length/blade size, rated connection, additional connection etc.
This handbook describes the modular feed‑through terminals TS 35 / PA, covering their installation requirements, ATEX certification and technical specifications. It is intended for engineers selecting and applying these terminals in hazardous area installations.
The document lists rated voltage and current, maximum clamping range, dimensions, tightening torque, and detailed order data for accessories and variants. It also includes marking systems and reference to the technical appendix for additional information.
| Rated voltage | 500 V |
|---|---|
| Maximum current | 24 A |
| Maximum clamping range | 0.08–4 mm |
| Dimensions (W×L×H) | 5 mm × 44 mm × 38 mm |
| Tightening torque range | 0.4–0.6 Nm |
The rated voltage is 500 V.
The maximum current is 24 A.
The dimensions are 5 mm × 44 mm × 38 mm.
The torque range is 0.4 to 0.6 Nm.
